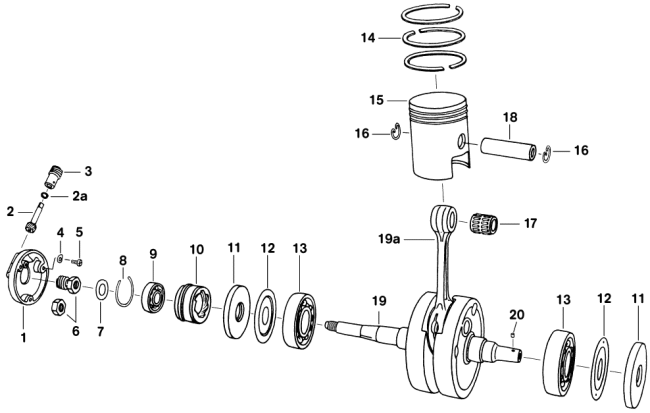

4.4. Crankshaft, Revolution counter drive

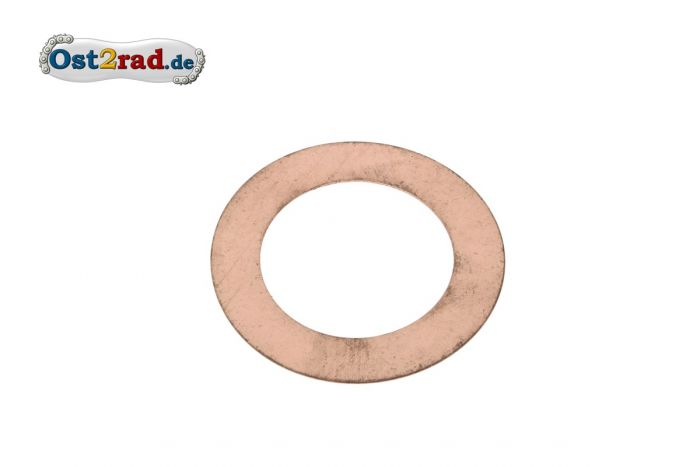

Neue Anlaufscheibe für unteres Kurbelwellenpleuel passend für MZ ETZ 250 und ETZ 251.
MZ Nummer: 29-43.005
DETAIL

DETAIL

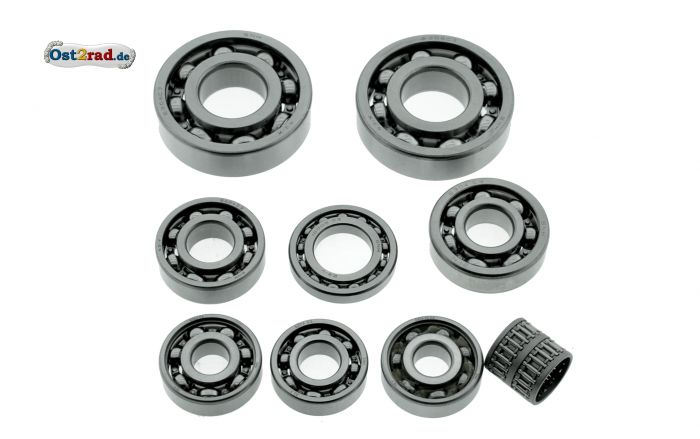

Bearing set for engine and gearbox for MZ, the models ETZ250, ETZ251, ETZ301. All bearings of course anew and the best quality. These ball bearings are produced no cheap products and especially for the construction of vehicles. Different brands are offered, models are seated like DKFL, SKF, SNH, CBF.These are selected carefully which quality (tolerance) is either C3 or C4. We select the bearings and follow with the fact which concerns it with the repair around older engines, accordingly the play is considered, so that these do not become hot and solidly go. Besides, we can fall back on our own, multiple experiences. This set consists of 10 pieces of bearings, of it 8 deep groove ball bearings incl. crankshaft bearing and 2 needle bearings for connecting rod, this are most important in the engine and gear. Following models in detail: 1x 6204, 2x 6203, 1x 6304, 1x 16005, 2x 6306, 1x 6302, 1x 18x22x24, 1x 22x26x26. In this connection we would like to draw the attention to the fact which we overtake in our workshop also engines, freshly camp down and seal. When required you ask for please without obligations; we also organise the transport of the engines. Furthermore rebuilt engines are available! Recommended accessories for this ball bearing - set: Thick set (seals and sealing rings) and engine oil, both also here in the shop!



DETAIL

Bild Nr.: 10

Curve platen for the gears of the abovementioned MZ - models. It concerns a new part, original MZ - production.

MZ number: 05-41.097

DETAIL

Bild Nr.: 16

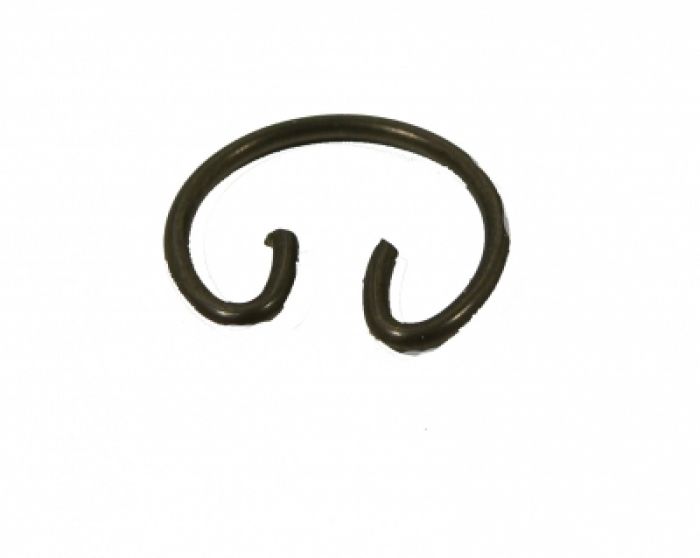

Fuse braces for ES, ETS, TS and ETZ-models for gudgeon pin fuse with diameter of the bolt 18 mm.

MZ number: 80-04.007

DETAIL

Bild Nr.: 19

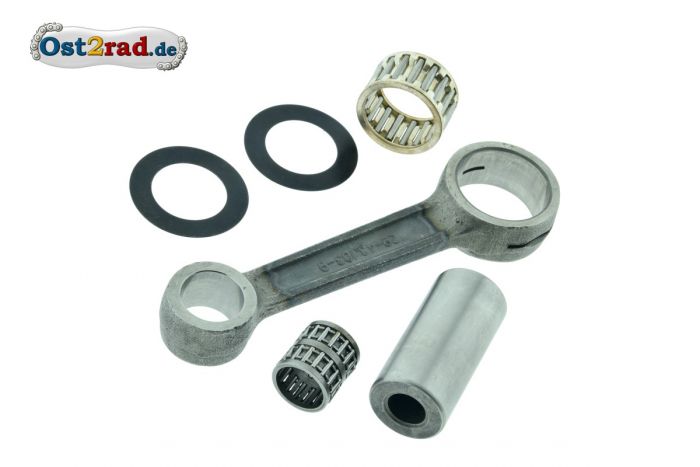

Complete set of connecting rods for the crankshaft of the models ETZ250, ETZ251 and ETZ301. This set consists of the connecting rod, 2 top performances - needle bearings, the bolt and the disks. All parts completely as illustrated!



DETAIL

Bild Nr.: 19

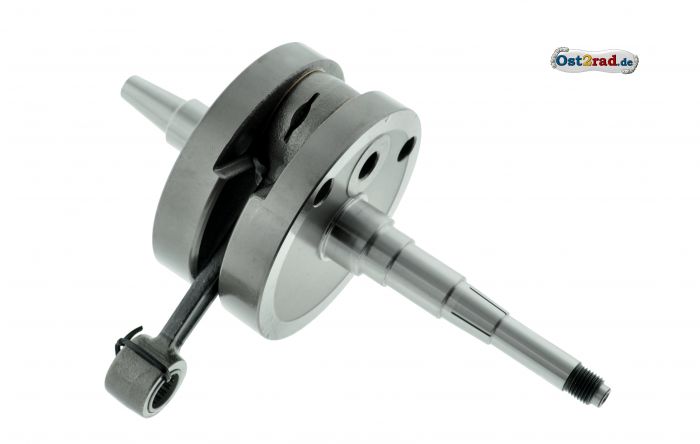

Complete new crankshaft for MZ of the models ETZ 250, ETZ 251, ETZ 301. Incl. bearing. New part in excellent quality. It concerns a postproduction which will survey of us before the delivery around flawless run to allow. Full guarantee power for the good price! If requested we also insert this shaft, please speak with us, follow please in addition also our Fetching and service of delivery with the number 99002.

MZ number: 29-43.010

DETAIL

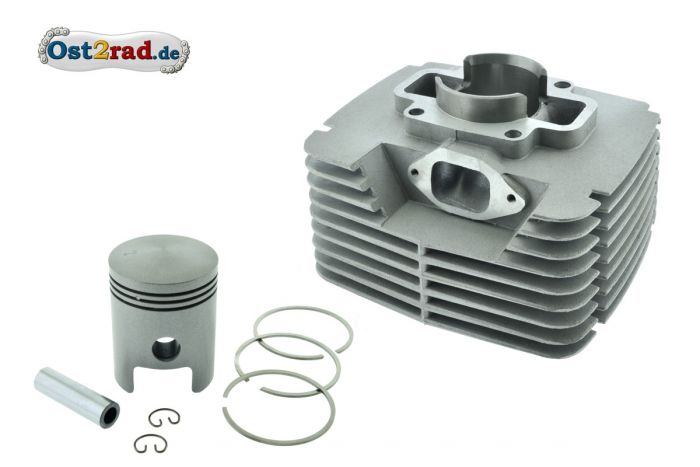

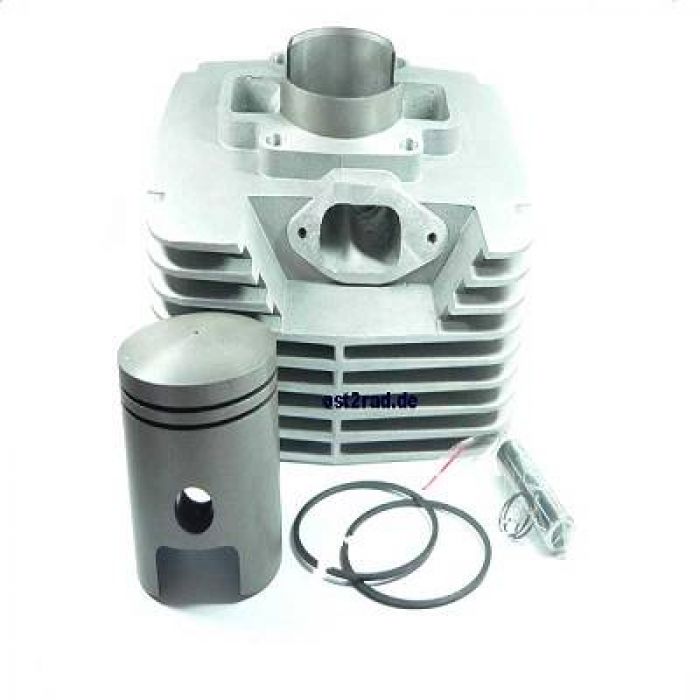

New cylinder with piston, piston rings, gudgeon pins and circlips. The piston owns 3 piston rings. This cylinder fits to all models ETZ250. This cylinder is checked by us, however, a production import cylinder is in situation kind quality. For higher claims we recommend the cylinder with the order number 1217!

MZ number: 29-42.017

DETAIL

New cylinder with piston, piston rings, gudgeon pins and circlips. The piston owns 3 piston rings. This cylinder fits to all models ETZ250. It is an import cylinder which we buy with quantity survey. In a German professional workshop the cylinder is ground and the piston is fitted. Thereby we reach a steady quality, good compression and an excellent longevity. The cheaper import cylinder (without remachining in Germany) has the order number 283.



DETAIL

Bild Nr.: 3

Bearing jack, stopper for the revolution counter driving mechanism, suitably with models MZ TS250 / 1, ETZ125, ETZ150, ETZ251 and ETZ250.

MZ number:
12-41.053
05-48.091

DETAIL

Bild Nr.: 6

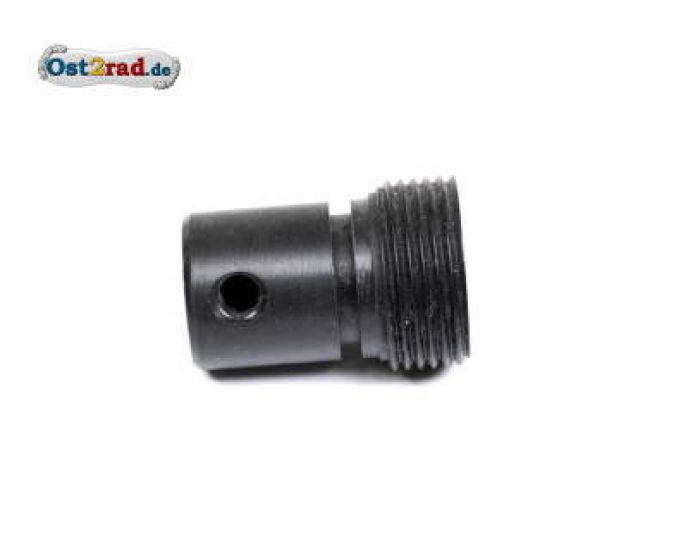

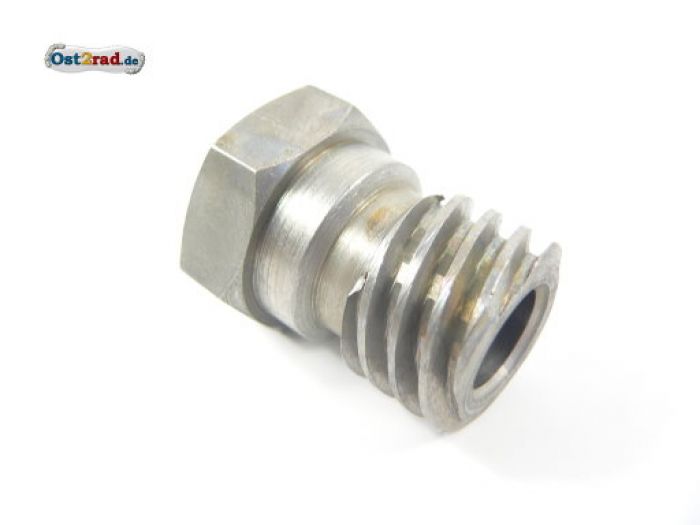

New screw for the tachometre driving mechanism suitably with all MZ ETZ250, ETZ251 and TS250 / 1. For the implementation without tachometre sits at this point a hexagon nut M14x1,5.

MZ number: 29-48.102

DETAIL

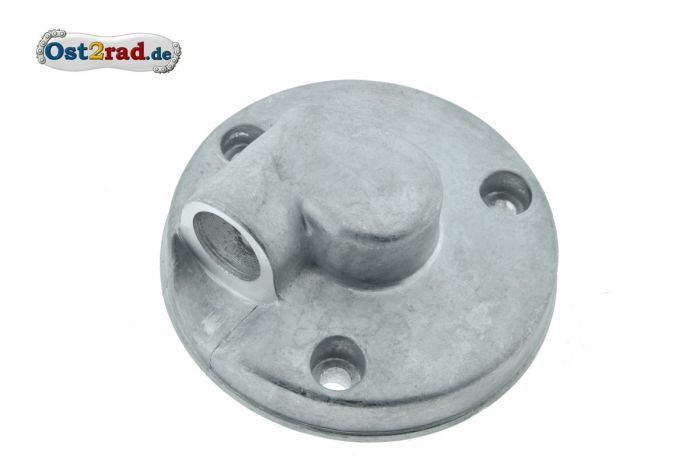

Neues Antriebsgehäuse für DZM-Antrieb am Motor passend für MZ ETZ 250, ETZ 251 und TS 250/1. Originalersatzteil mit Lagerspuren.
MZ Nummer: 29-48.101
DETAIL

Bild Nr.: 18
MZA-Artikelnr.:   15052

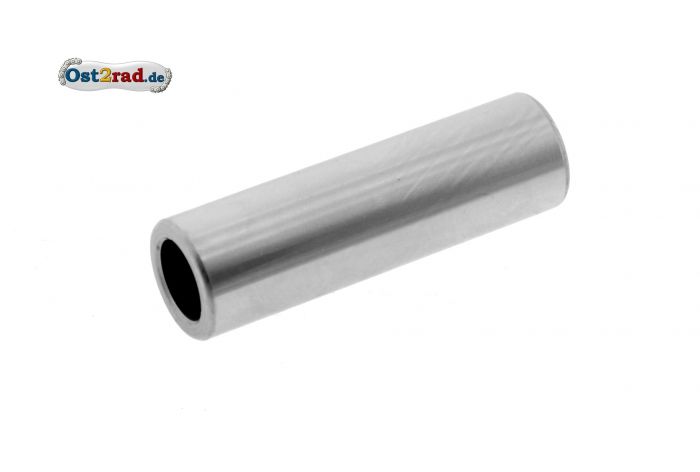

Gudgeon pin for ES250, ETS250, TS250, TS250 / 1, ETZ250 and ETZ251

Diameter 18 mm, length 60 mm

MZ number: 80-20.725

DETAIL

Bild Nr.: 20

Key for the hold of the crankshaft with all MZ 250th models.
Size: 4x4 mm.

MZ number: 94-01.438

DETAIL

MZA-Artikelnr.:   17052

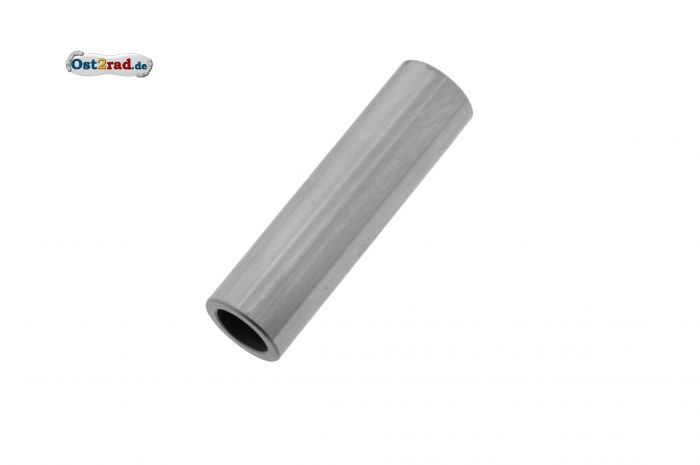

Neuer Kolbenbolzen 18x11x65 passend für MZ ETZ 300 / 301.
MZ Nummer: 80-20.725
DETAIL

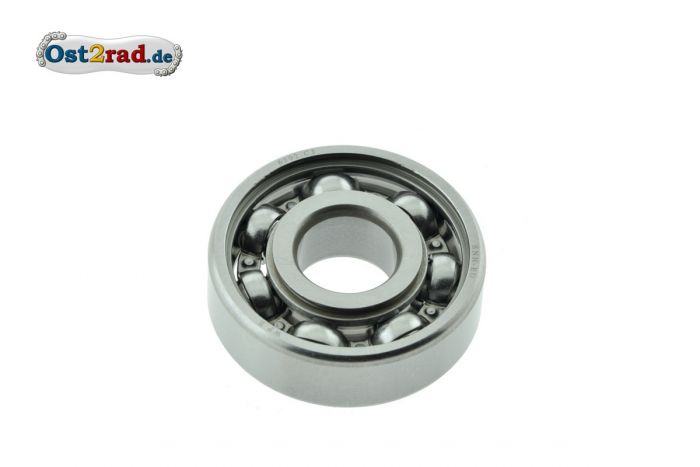

Neues einreihiges Lager. Hergestellt von der Firma SNH Europe, Leipzig. Es handelt sich um ein hochwertiges Markenprodukt in Industriequalität. Die genaue Bezeichnung lautet 6302 C3 (leicht größere Lagerluft), speziell für Fahrzeugbau. Wir garantieren beste Qualität (verwenden wir in eigener Werkstatt).

Abmaße ca. Außendurchmesser 42mm, Innendurchmesser 15mm, Dicke 13mm.


DETAIL

MZA-Artikelnr.:   10818

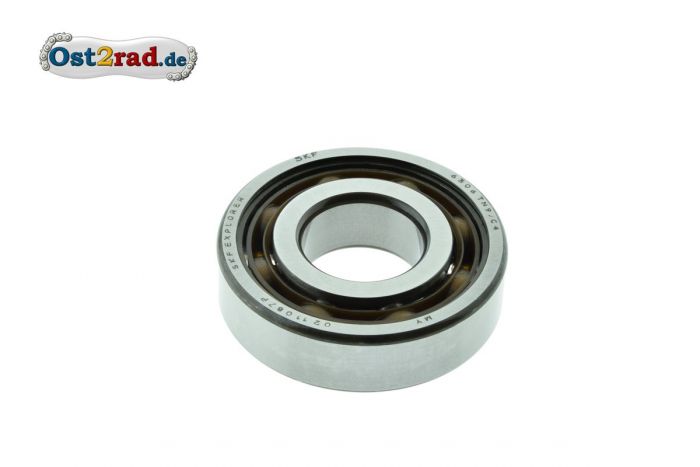

Neues Rillenkugellager der Firma SKF.
Die genaue Bezeichnung lautet: 6306 C4 T9 (TN)

passend für: Kurbelwelle ETZ250, ETZ251, ETZ301 und TS250/1

Die Eigenschaften des Lagers sind:

Innendurchmesser: 30mm

Außendurchmesser: 72mm

Breite: 19mm

Lagerluft: C4 stark erhöhte radiale Lagerluft

Grenzdrehzahl: 20000 Umin

Referenzdrehzahl: 13000 Umin

Abdichtung: keine

Lagerkäfig: T9 Käfig aus glasfaserverstärktem Polyamid 66, kugelgeführt (25% Glasfaser)

MZ Nummer: 93-94.566
DETAIL

MZA-Artikelnr.:   10818B

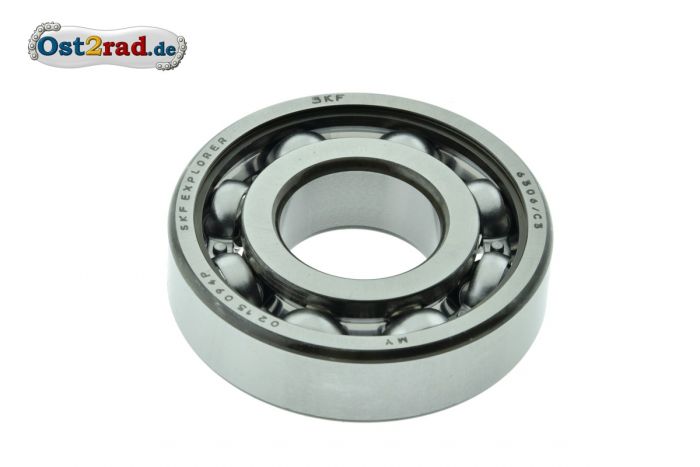

Neues Rillenkugellager der Firma SKF.
Die genaue Bezeichnung lautet: 6306 C3

passend für: Kurbelwelle ETZ250, ETZ251, ETZ301 und TS250/1

Die Eigenschaften des Lagers sind:

Innendurchmesser: 30mm

Außendurchmesser: 72mm

Breite: 19mm

Lagerluft: C3 Erhöhte radiale Lagerluft

Grenzdrehzahl: 20000 Umin

Referenzdrehzahl: 13000 Umin

Abdichtung: keine

Lagerkäfig: Metall
MZ Nummer: 93-94.566
DETAIL

MZA-Artikelnr.:   17910

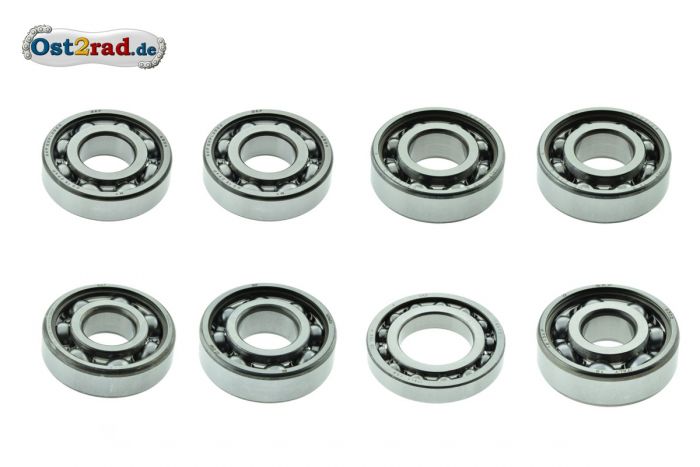

Neuer Satz Kugellager passend für ETZ250, ETZ251 und ETZ301
Der Satz besteht aus 8 Lagern:

2x 6306
1x 6304
1x 6204
2x 6203
1x 16005
1x 6302


Beste Qualität der Lager in C4 von der Firma SKF. Diese ist mehrfach erprobt und getestet.

Auf Anfrage führen wir auch das Lagern und Abdichten der Motoren durch. Mehr darüber können Sie unter Service Arbeitsleistungen Werkstatt Service erfahren.
MZ Nummer:
DETAIL

Bild Nr.: 8

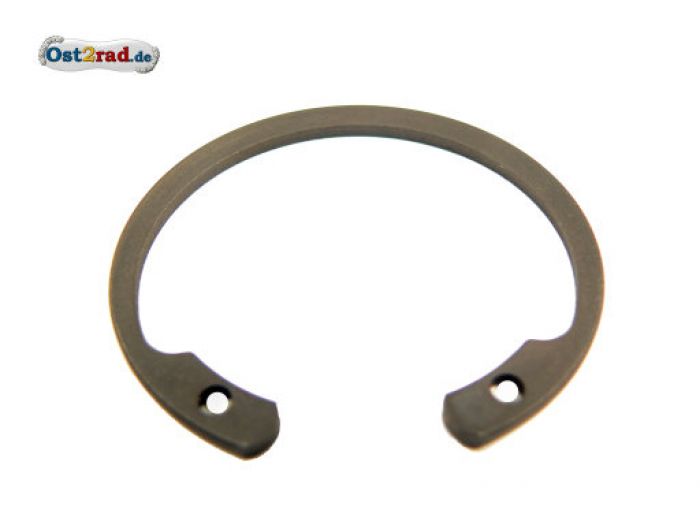

New ring 42x1 DIN 472 for the protection of the groove ball bearing in 6004 suitably for all MZ ETZ125 and ETZ150.

MZ number: 94-40.661

DETAIL

Bild Nr.: 17
MZA-Artikelnr.:   10827A

New needle wreath, needle card cage KK 18x22x24 for the gudgeon pin suitably with all MZ TS250 / 0, TS250 / 1, ETZ250 and ETZ251. This bearing is single-breasted.

MZ number: 94-02.455

DETAIL

Bild Nr.: 17

New needle wreath, needle card cage KK 18x22x24 for the gudgeon pin suitably with all MZ TS250 / 0, TS250 / 1, ETZ250 and ETZ251. This bearing is two-rowed.

MZ number: 94-02.455

DETAIL

Bild Nr.: 19

New needle wreath, needle card cage K 32x40x22 for the connecting rod suitably with all MZ ETZ250 and ETZ250. This bearing is single-breasted.

MZ number: 94-02.623

DETAIL

New sealing ring for the switch shaft with all models MZ.

MZ number: 96.72-602

DETAIL

Bild Nr.: 11

1a Qualität
